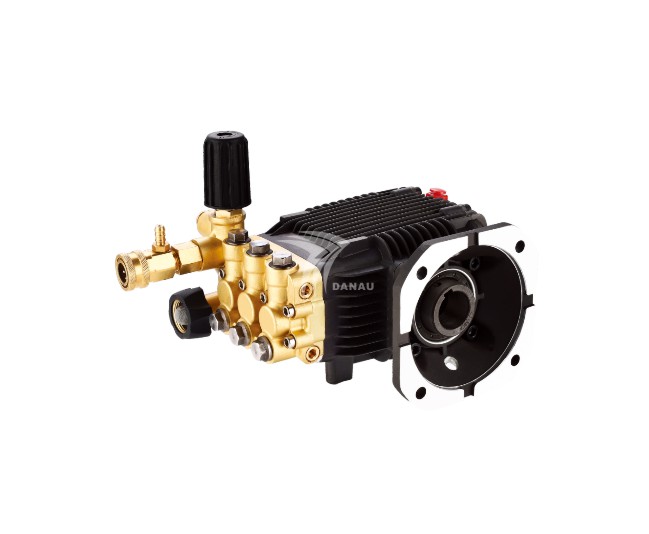

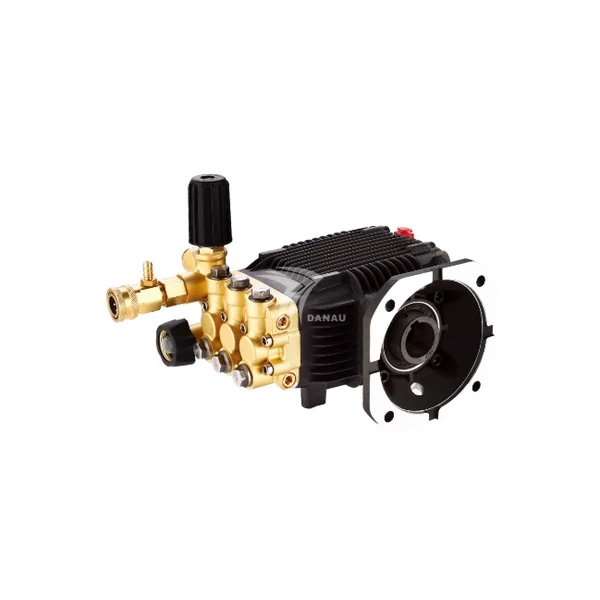

| Pump Model: | DBC-1507C2 |
| Bore/Plunger Dia.: | 15mm |
| Stroke: | 7mm |
| Fluid End/Manifold Material: | Brass Forged |
| Version/Type: | C Version, Motor Direct Drive |
| Flange Type: | C2 (Fit for Motor 4.0kw) |
| Shaft Dia.: | Hollow Shaft 24mm/28mm |
| Max Input POWER: | 4.0kw |
| Max Input RPM: | 2900RPM |
| Port On Pump: | Inlet 3/8", Outlet 1" (On pump side) |
| Unloader/Pressure Regulator: | Include,Bolt on trap type |
| Inlet/Port On Unloader: | Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect |
| Oil Bath Capacity: | 550ml (half level of oil gauge) |
| Oil Type: | SAE 15W/40 Non-Detergent |
| Water Inlet Pressure: | 0-50psi/3.5bar |
| Max Inlet Water Temp.: | 50℃/122℉ |
| Shipping Size.: | 32.5x30.5x24cm |
| Shipping Weight.: | 8.0kgs |
| Application: | High Pressure Water |
