DESCRIPTION
Water Jetting Rotatory Fan Fog Cannon
Special designed medium-duty rotating mechanism features a integrated aluminium casing, bearing load and ceramic seat that ensure a longer life and durability. It spins at a high speed with two 15° nozzle and clean a 15" wide path without leaving streaks, reducing time. Ideal for large, flat surfaces suck as driveways, patios, and decks. Also cleans vertical surfaces like garage doors and home siding up to 5 x faster than a standard nozzle.

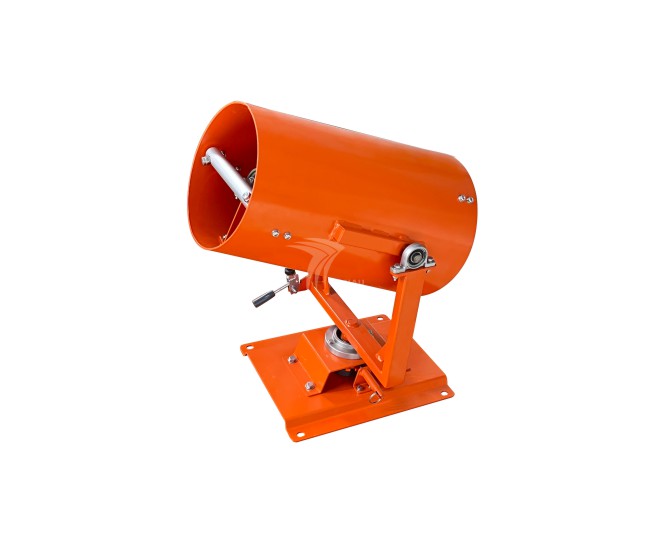

The product consists of a wind cylinder, a wind leaf, a shaft, a spray rod bus and an adjustment base, and the thrust generated by high-pressure water injection makes the wind leaves rotate at high speed, thus sending the spray head sprayed water mist wind to a distance.
Products using high-pressure water as a power source for the rotation of wind leaves to convert hydraulic energy into mechanical energy, without the need for additional motors to drive wind leaves to achieve energy-saving purposes.

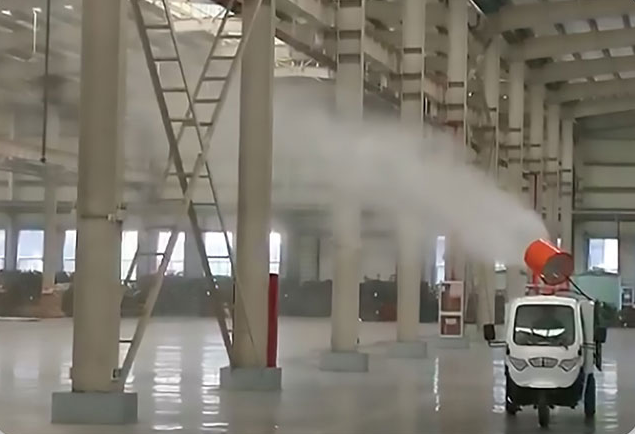

Product installation, maintenance is simple, can be installed in the electric sanitation flushing car to make it an electric fog gun car, to achieve a car multi-use.
Spray, epidemic prevention, disinfection, dust reduction, fire protection, etc.
Suitable pressure range: 15-30Mpa
Suitable for traffic range: 15-30L/min
Effective injection distance: 15-30M
Wind leaf speed: 500-2500Rpm/min
Adjustable base: 360 degrees adjustable with locking.
Pitch angle: The pitch angle is up to 60 degrees and the elevated angle is 4 degrees.
