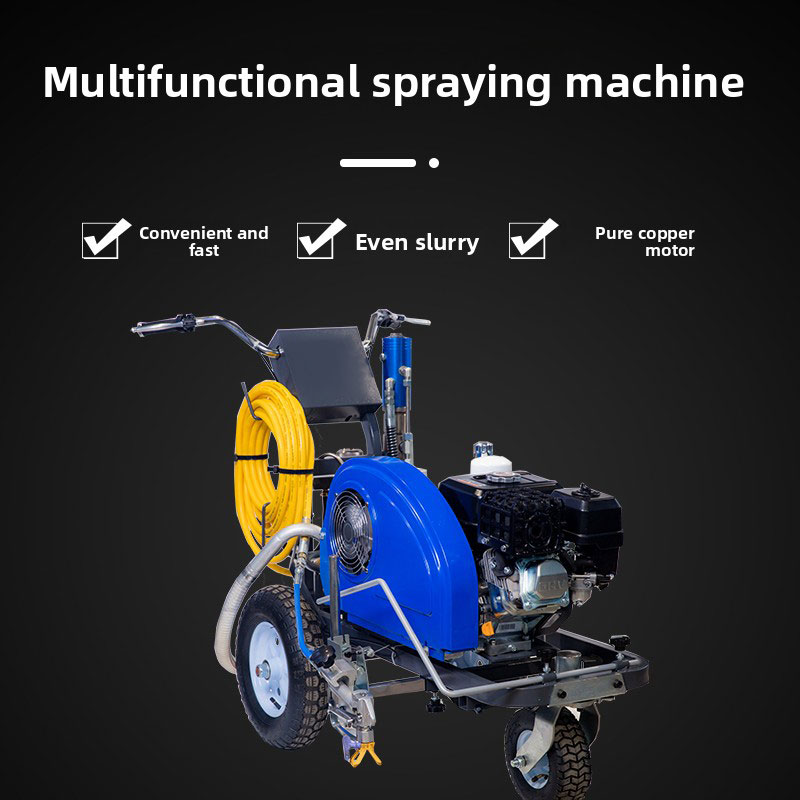

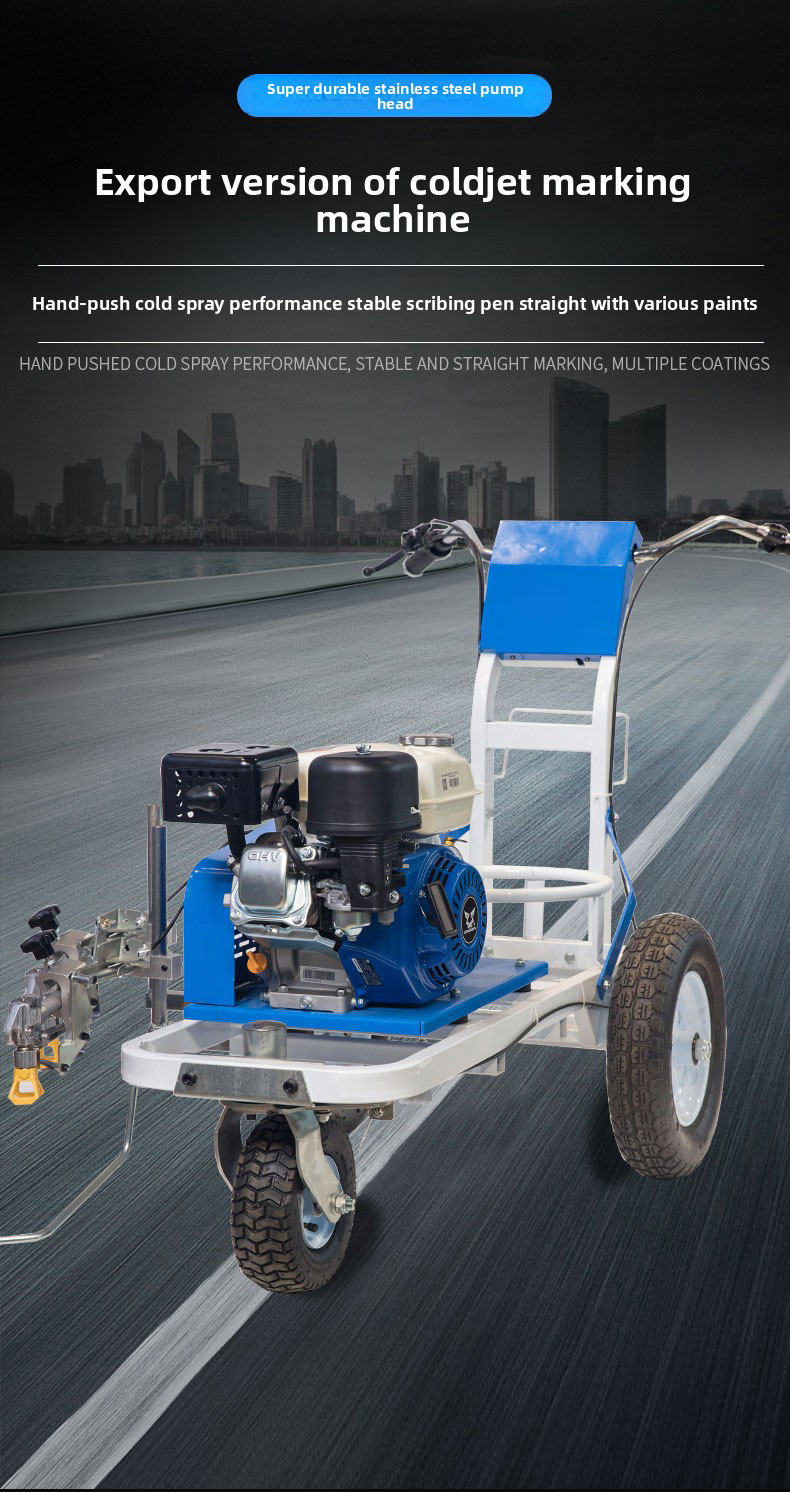

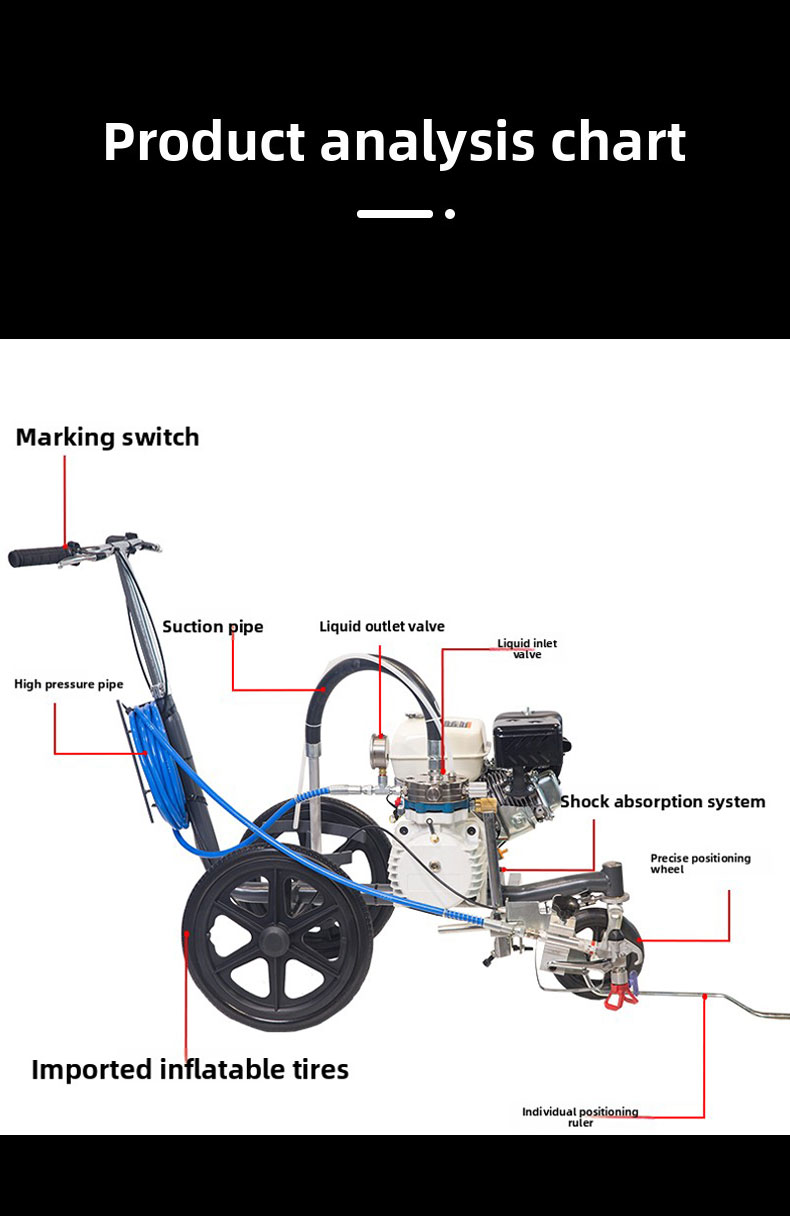

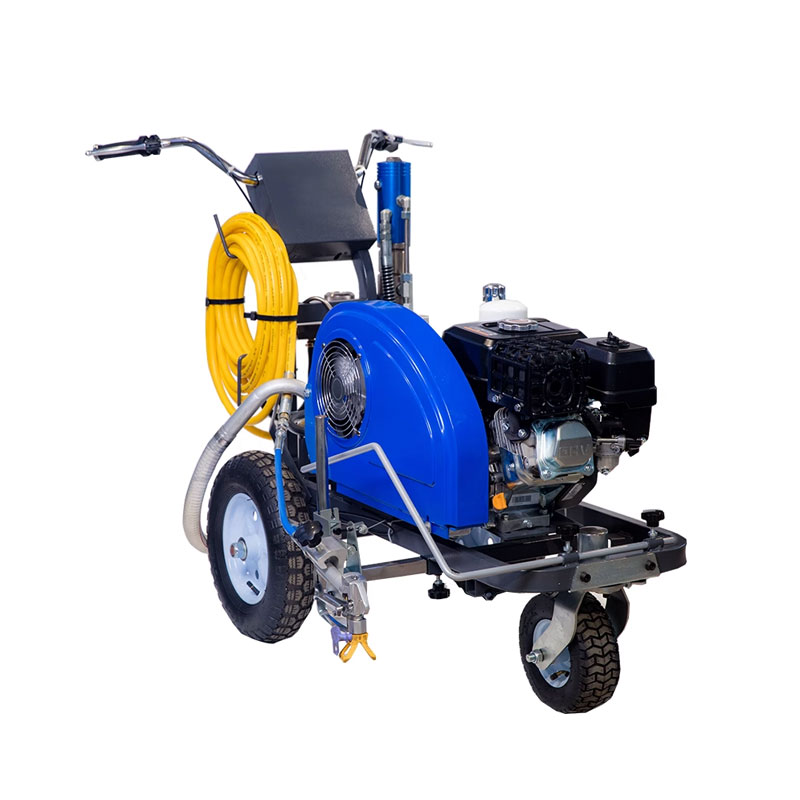

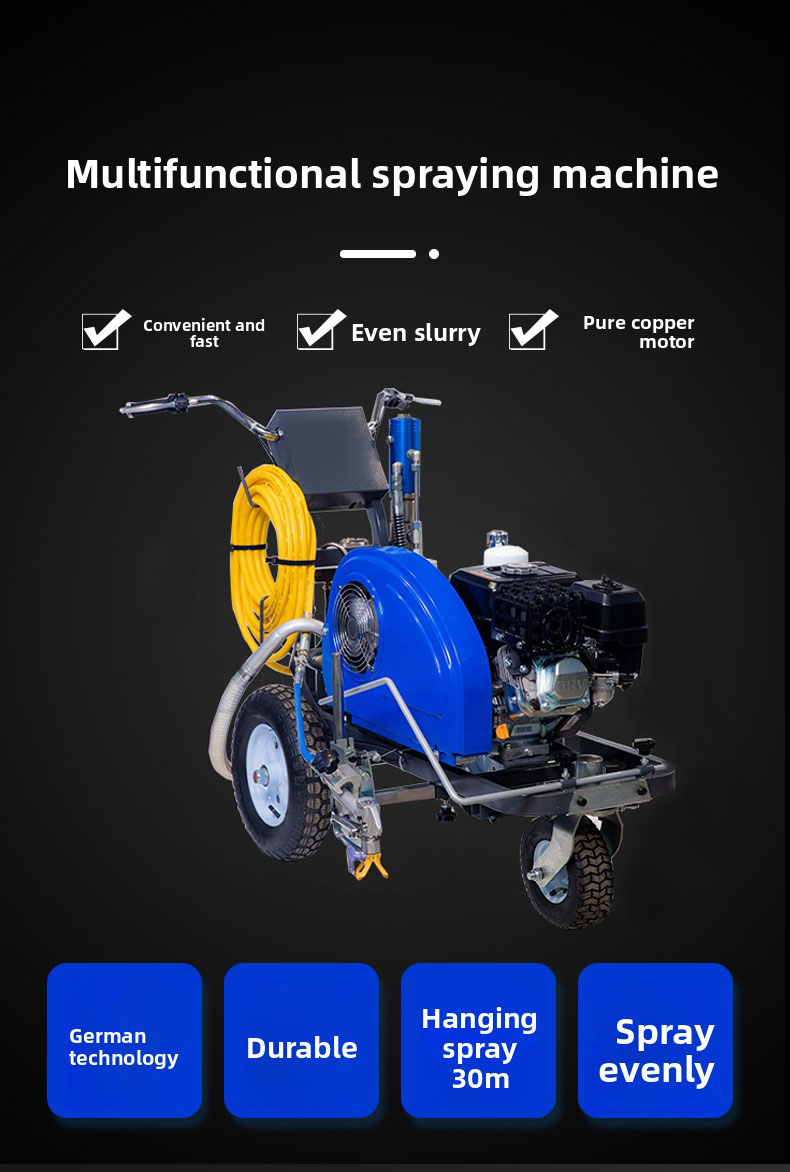

| Product Type | Airless Line Striper / Double-Gun Road Marking Machine |
| Model | E-H110 |
| Core Components | PLC, Engine, Pump |

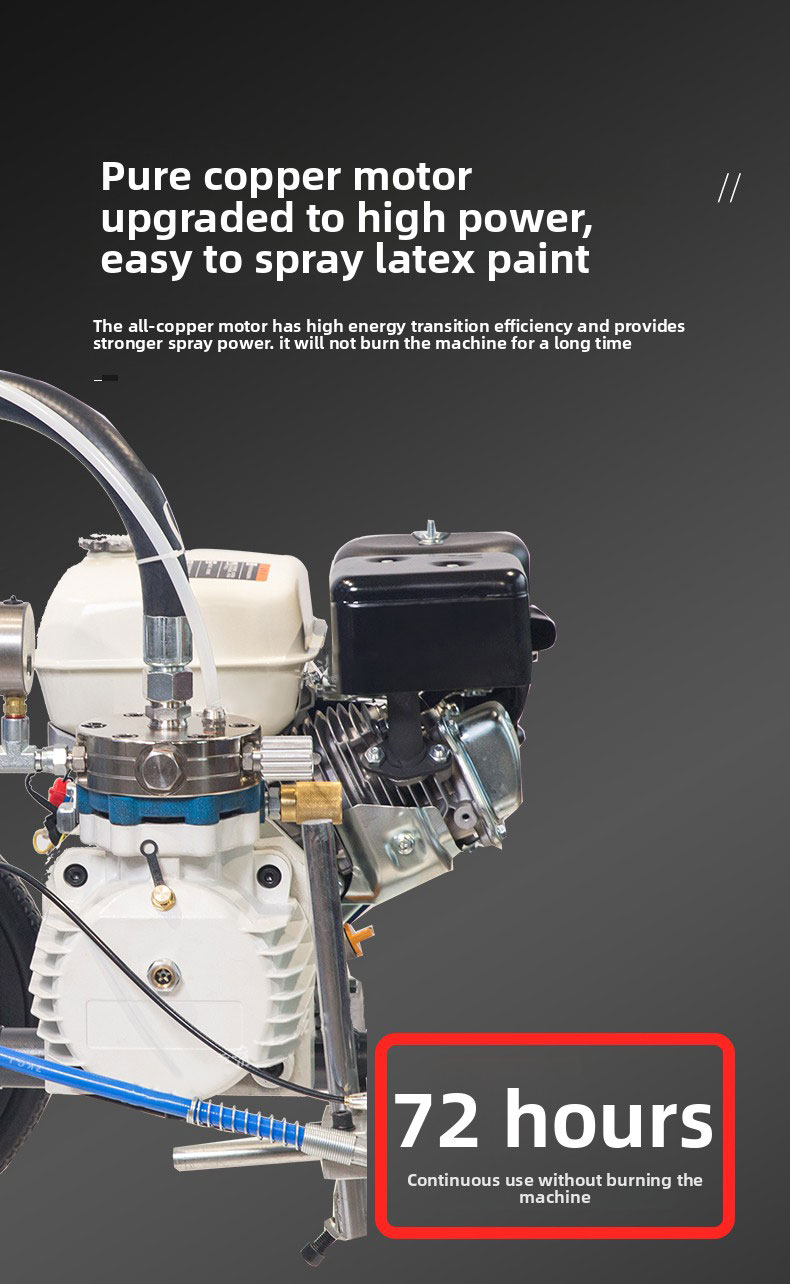

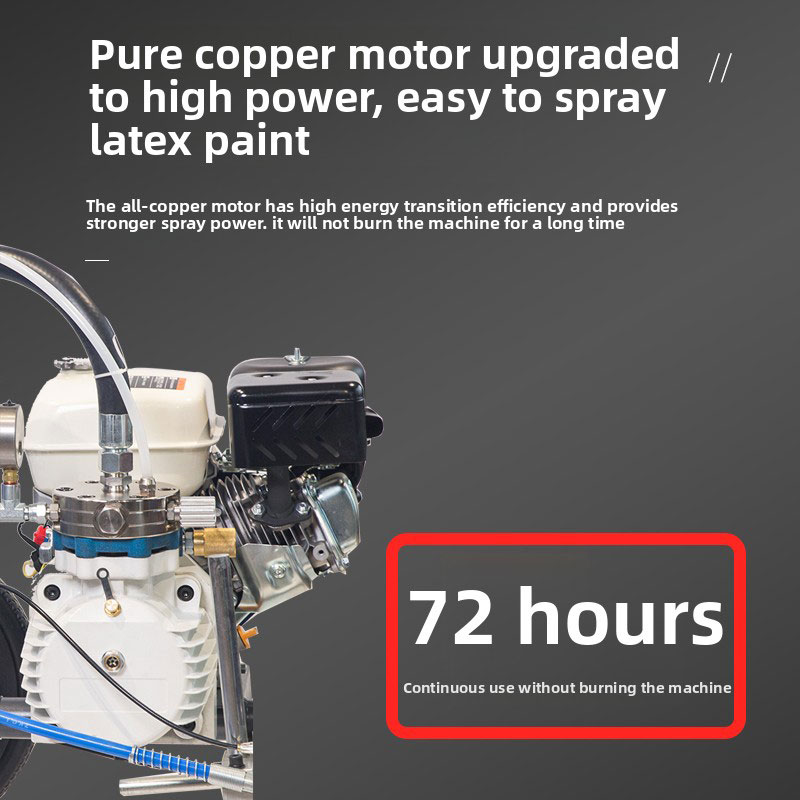

| Engine | 7.5 HP |
| Pump Material | Hydraulic Plunger Pump |
| Working Pressure | 3300 PSI |
| Guiding Method | Ruler Guide |
| Flow Rate | 10 LPM |
| Standard Nozzle Orifice (Double Gun) | 0.033" |
| Maximum Nozzle Orifice (Single Gun) | 0.047" |
| Line Marking Speed | Single Gun: 120–150 m/min Double Gun: 90–120 m/min |
| Line Width Range | 100 mm – 800 mm |
| Net Weight | 180 kg |
| Overall Dimensions | 90 × 150 × 110 cm |
| Packing | Single Item (Wooden Case Package) |
| High-Pressure Hose Length | 10 m |
| High-Pressure Hose Burst Pressure | 350 bar |
| Spray Gun Configuration | 1 set of spray gun (including gun handle, nozzle seat and nozzle) |
| Applicable Coatings | Road Marking Coatings (Waterborne/Solvent-based Cold Spray Coatings, Acrylic Coatings, Special Road Paints, High-Viscosity Road Coatings) |
| Application Scenarios | Ultra-large-scale and Extra-wide Line Width Projects such as Expressways, Airports, and Ports |
| Maintenance Features | Stable hydraulic system performance, low failure rate, and long service life |
| Warranty Period | 1 Year |
